Traktor sawit 25HP 4wd

Product Categories
CHANGSHA SUNLIGHT AGRICULTURAL MACHINERY&FACILITIES CO.LTD.
Contact Now

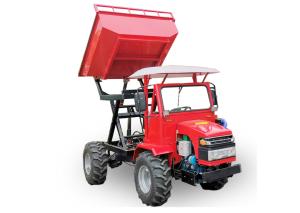

Traktor sawit 25HP 4wd

Brand Name : SUNLIGHT

Model Number : SUNTRAC100

Certification : ISO

Place of Origin : CHINA

MOQ : 1 Unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 Unit per year

Delivery Time : 30 days

Packaging Details : 3 units per 40HQ by dismantle

Power : 25HP

Starter : electric

Color : customerized

Steering : full hydraulic

Drive model : FWD/RWD/4WD

Condition : New

Type : Mini Loader,Wheel Tractor,mini dumper

Contact Now

Traktor sawit 25HP 4wd

Application:

SUNLIGHT tractor dumper can solve most your problems for your tough transport work in mountainous or farm for transportation of agriculture products such as rice, bamboo, wood , fruit, oil palm, durian, pineapple and farm use materials such as fertilizer, tools,soil,sand and also helpful in construction site and short distance transport. SLT series has been developed to offer sturdy and reliable vehicles to be used in hardly accessible places with narrow passages and steep slopes, where safety and reliability should be constantly ensured.

Traktor sawit 25HP 4wd

Traktor sawit 25HP 4wd

Parameters of SUNTRAC100
Name名称 SN Item 项目 SUNTRAC100
Engine 发动机 1 Model 型号 DL1122
2 Starter 启动 Electronic 电动
3 CC排量 1.344L
4 Power 功率 18KW/25HP
Gear Box 变速箱 5 Model 型号 分动箱
6 Shift Mothod 换挡方式 Manual 手动
7 Drive Wheel 驱动 FWD /RWD/4WD
Dimension 尺寸 8 Overall 整车 长4300宽1840 高2200mm
9 Cargo Tank 货箱 长1950 宽1500高600mm
10 Distance between shafts 轴距 1950
11 Whee base 轮距 前1030 后1575mm
Weight 重量 12 Machine Weight 整车重量 /
13 Payload 载重 1T
14 Cabin 驾驶室 Simple canopy/1 person
Transimission Shaft 传动轴 15 Speed 速度 38km/h
16 Gradeability 爬坡度 /
17 Ground Clearance 离地间隙 240mm
18 Rear shaft 后桥 130
Plate 钢板 19 Front 前 /
20 Rear 后 12C
Steering 转向 21 Steering 转向 Full Hydraulic/Articulated body
Brake System 刹车 22 Brake 刹车 Air brake断气刹
23 Hand Brake 手刹 Air brake断气刹
Hydraulic Cylinder 油缸 24 Hydraulic Cylinder 油缸 Sissor Double 剪刀式双油缸
Tire 轮胎 25 Front/Rear 前/后 10.0/75-15.3


Traktor sawit 25HP 4wd

Traktor sawit 25HP 4wdTraktor sawit 25HP 4wd

It adopts articulated design, which is characterized by the hydraulic steering in the central joint. Compared to the front wheel-steering version, it provides a reduced turning radius and the passage of the rear wheels on the front wheels’ trails. The SLT articulated models are particularly suitable for the operators working in very reduced places and narrow passages.

Traktor sawit 25HP 4wd

SUNLIGHT has always concentrated its resources in this professional field, accumulating levels of expertise that guarantee the delivery of best products expressing the essence of quality and efficiency.

Traktor sawit 25HP 4wd
